Modern enterprise networks require high availability, faster throughput, and reliable failover mechanisms to support business-critical applications. As organizations continue expanding their infrastructure, network engineers often face the challenge of connecting switches from different vendors while maintaining performance and redundancy. One of the most effective ways to achieve this goal is through Link Aggregation Control Protocol, commonly known as LACP.
LACP is an industry-standard protocol designed to combine multiple physical Ethernet interfaces into a single logical connection. Instead of relying on one cable between switches, administrators can bundle several interfaces together to increase available bandwidth and create fault tolerance. If one cable fails, the remaining interfaces continue forwarding traffic without disrupting network communication. This makes LACP one of the most widely used technologies in enterprise switching environments.
Cross-vendor deployments are common in modern infrastructures. Many organizations operate networks containing both Cisco IOS and Juniper Junos devices because of mergers, acquisitions, cost optimization, or departmental hardware preferences. Since LACP follows IEEE standards, interoperability between Cisco and Juniper switches is achievable with proper configuration practices.
Deploying LACP between IOS and Junos involves more than simply enabling commands on interfaces. Administrators must understand aggregation principles, interface behavior, trunking methods, negotiation modes, hashing algorithms, and VLAN handling to ensure stable operation. A successful implementation creates resilient network paths capable of carrying large amounts of traffic efficiently while minimizing downtime.
What LACP Actually Does in a Network
At its core, LACP allows multiple Ethernet interfaces to function as a single logical link called an aggregated interface or port channel. Instead of forwarding traffic through one cable, the switch distributes traffic across several physical connections using load-balancing algorithms. This improves throughput and prevents bottlenecks.
For example, suppose two switches are connected using four separate 1Gbps interfaces. Without aggregation, spanning tree would likely block several links to prevent loops, leaving only one active path. With LACP enabled, all four links can participate simultaneously, providing a combined logical bandwidth of 4Gbps while maintaining loop-free topology.
Another major advantage of LACP is redundancy. In a traditional single-link setup, disconnecting one cable causes complete loss of connectivity until failover mechanisms activate. In an aggregated design, the logical interface remains operational even if one or more member links fail. Traffic automatically redistributes across the remaining active interfaces.
LACP also simplifies network management. Administrators configure VLANs, trunk settings, and policies on one logical interface instead of repeating configurations across every physical port. This reduces complexity and minimizes configuration inconsistencies.
Because LACP operates according to IEEE standards, it provides interoperability between networking vendors. Cisco IOS refers to aggregated interfaces as EtherChannels or Port-Channels, while Juniper Junos uses Aggregated Ethernet interfaces known as AE interfaces. Despite the naming differences, the underlying protocol behavior remains similar.
The Importance of Standards-Based Aggregation
Before standardized aggregation protocols became common, vendors relied heavily on proprietary technologies. Cisco developed Port Aggregation Protocol, often called PAgP, while other manufacturers created their own implementations. These solutions worked effectively within single-vendor environments but created compatibility problems when connecting devices from different manufacturers.
Standardization solved this issue. IEEE 802.3ad, later integrated into IEEE 802.1AX, established a universal framework for link aggregation. LACP became the negotiation protocol responsible for dynamically managing aggregated links between devices.
This standardization is especially valuable in mixed-vendor environments. Organizations rarely maintain entirely uniform infrastructures forever. Hardware refresh cycles, acquisitions, branch deployments, and budget considerations frequently introduce devices from multiple vendors into the same network.
By using LACP instead of proprietary alternatives, administrators ensure interoperability between Cisco IOS and Juniper Junos devices. This reduces vendor lock-in and provides greater flexibility when designing scalable enterprise networks.
Standards-based aggregation also improves troubleshooting consistency. Network engineers can apply similar operational concepts regardless of vendor platform. Although syntax varies between IOS and Junos, the fundamental logic behind interface bundling, negotiation, and failover remains consistent.
How LACP Negotiation Works
LACP uses special Ethernet frames called LACP Data Units to exchange information between switches. These packets help participating devices determine whether interfaces can join the same aggregation group.
Each side advertises information such as system priority, port priority, interface identifiers, and operational parameters. The switches compare these values to decide which links become active members of the aggregation group.
LACP supports two operational modes known as active and passive. Interfaces configured in active mode actively send LACP packets to initiate negotiations. Passive interfaces wait for incoming LACP frames before responding.
For successful aggregation, at least one side must operate in active mode. If both interfaces remain passive, no negotiation occurs because neither side initiates communication.
In Cisco IOS environments, administrators commonly configure interfaces using the “mode active” parameter to ensure reliable negotiation. Junos deployments frequently use active mode as well for predictable interoperability.
Once negotiation succeeds, the participating interfaces join a logical aggregation group. Traffic distribution begins according to the configured hashing algorithm, and the aggregated interface becomes operational.
Traffic Distribution and Load Balancing
One of the most misunderstood aspects of LACP is how traffic distribution actually works. Many administrators assume that a single data flow automatically uses the combined bandwidth of all interfaces simultaneously. In reality, LACP balances multiple conversations across member links rather than splitting individual packets randomly.
Switches use hashing algorithms to determine which interface handles specific traffic flows. Common hashing factors include source IP address, destination IP address, MAC addresses, TCP ports, or combinations of these values.
Suppose a port channel contains four 1Gbps interfaces. One large file transfer between two devices may still use only a single 1Gbps link because the hashing algorithm assigns that conversation to one interface. However, multiple simultaneous flows distribute across all available links, increasing overall aggregate throughput.
This behavior is ideal for enterprise environments where many users, servers, and applications generate numerous concurrent connections. Web traffic, voice communication, backups, database queries, and virtualization workloads all benefit from balanced traffic distribution.
Proper load balancing improves resource utilization and prevents congestion on individual interfaces. Administrators should select hashing methods appropriate for their traffic patterns to maximize efficiency.
Why Businesses Use Mixed Cisco and Juniper Environments
Enterprise infrastructures evolve over time. Rarely does an organization replace every network device simultaneously. Instead, networks grow incrementally through expansions, refresh cycles, and acquisitions.
Cisco and Juniper remain two dominant vendors in enterprise networking. Cisco devices are widely recognized for campus switching and extensive enterprise adoption, while Juniper equipment is often preferred in service provider and high-performance routing environments.
A business might deploy Cisco switches at branch locations while operating Juniper devices in core data centers. Another organization may inherit Juniper infrastructure after acquiring another company. In some cases, separate IT teams choose different vendors based on departmental requirements.
Mixed-vendor deployments introduce interoperability challenges, especially when implementing advanced features like link aggregation. Proprietary protocols usually fail in these scenarios, making standards-based technologies essential.
LACP becomes the ideal solution because it enables seamless aggregation across vendor boundaries. Cisco IOS and Junos can negotiate aggregation parameters dynamically while maintaining reliable redundancy and throughput improvements.
Understanding how both platforms implement LACP allows administrators to deploy stable cross-vendor connections without sacrificing performance or operational simplicity.
Preparing for LACP Deployment
Before configuring aggregation, administrators should carefully plan the deployment. Successful LACP implementation depends on consistency between both sides of the connection.
First, ensure that all participating interfaces operate at identical speeds and duplex settings. Mixing interface speeds within the same aggregation group typically causes negotiation failures or inconsistent behavior.
Second, verify that interfaces belong to compatible VLAN configurations. Trunking settings, allowed VLAN lists, native VLAN assignments, and spanning-tree behavior should align between Cisco and Juniper devices.
Third, confirm physical connectivity. Incorrect cabling is one of the most common causes of aggregation issues. Each member interface should connect directly to the corresponding switch participating in the same aggregation group.
Fourth, determine the desired number of links. More interfaces provide higher aggregate bandwidth and redundancy, but excessive links may introduce unnecessary complexity. Administrators should balance scalability with operational simplicity.
Fifth, evaluate hardware limitations. Different switch models support varying numbers of aggregated interfaces and member links. Understanding platform capabilities prevents oversubscription and compatibility problems.
Finally, establish a consistent naming and documentation strategy. Logical interfaces should follow predictable conventions to simplify troubleshooting and future maintenance.
Understanding Cisco IOS EtherChannel Concepts
Cisco IOS refers to link aggregation as EtherChannel technology. EtherChannel allows multiple physical interfaces to operate as one logical Port-Channel interface.
Port-Channels inherit configurations applied to the logical interface rather than requiring individual configuration on each member port. This simplifies administration and ensures consistency across the aggregation group.
Cisco supports multiple EtherChannel negotiation methods. These include static “on” mode, proprietary PAgP, and standards-based LACP. In mixed-vendor environments, LACP is the preferred option because of interoperability support.
IOS configurations usually begin by selecting a range of interfaces. Administrators assign those interfaces to a channel group and specify the negotiation mode. Once the group forms, the Port-Channel interface becomes available for additional configuration.
Cisco switches typically use interface names such as Port-channel1 or Po1. VLAN trunking, spanning-tree settings, and other policies are applied directly to this logical interface.
Because IOS streamlines interface grouping, administrators can configure several ports simultaneously using interface range commands. This reduces repetitive configuration tasks and speeds deployment.
Understanding Juniper Aggregated Ethernet Concepts
Juniper Junos handles aggregation differently from Cisco IOS. Instead of Port-Channels, Junos uses Aggregated Ethernet interfaces identified as AE interfaces.
Each physical interface must be individually assigned to the aggregation group. Administrators specify the target AE interface for every participating port. Although this process involves additional steps compared to IOS, it provides granular control over interface behavior.
Before enabling aggregation, Junos requires aggregated Ethernet support to be activated at the chassis level. Administrators define how many aggregated devices the system should support.
Junos also separates physical interface configuration from logical interface configuration. Physical ports reference the AE interface, while VLAN and switching settings are applied directly to the AE interface itself.
LACP operational settings, including active mode, system priority, and periodic timers, are configured under aggregated Ethernet options.
The Junos configuration model emphasizes hierarchical structure and commit-based changes. Unlike IOS, which applies commands immediately, Junos stores candidate configurations until administrators issue a commit command.
This commit-based workflow reduces accidental configuration mistakes and allows administrators to review changes before activation.
Why Trunking Matters with LACP
Most switch aggregation deployments involve trunk ports rather than access ports. Trunking allows multiple VLANs to traverse the aggregated connection simultaneously.
Without trunking, administrators would need separate physical links for each VLAN, dramatically increasing cabling complexity and limiting scalability. Combining trunking with LACP creates high-capacity inter-switch links capable of carrying traffic for many VLANs efficiently.
When deploying LACP between IOS and Junos, trunk configurations must match on both ends. VLAN mismatches frequently cause connectivity issues even when aggregation itself functions properly.
Cisco IOS typically uses switchport trunk commands on the Port-Channel interface, while Junos configures Ethernet-switching trunk mode under the AE interface.
Administrators should also ensure native VLAN settings align correctly to avoid tagging inconsistencies and spanning-tree problems.
Proper trunk configuration ensures seamless VLAN propagation across the aggregated connection while maintaining redundancy and throughput improvements.
The Relationship Between LACP and Spanning Tree
Spanning Tree Protocol prevents Layer 2 loops in switched environments by blocking redundant paths. Without spanning tree, loops can create broadcast storms capable of crippling an entire network.
LACP interacts closely with spanning tree. Instead of viewing each physical interface separately, spanning tree treats the aggregated bundle as one logical connection. This allows all member links to remain active simultaneously without causing loops.
This integration represents one of the major advantages of link aggregation. Without LACP, redundant links between switches would often remain blocked by spanning tree. Aggregation enables administrators to use all available bandwidth while preserving loop prevention mechanisms.
Spanning-tree convergence also becomes more stable because the logical interface changes state as a single entity rather than managing multiple independent links.
Understanding this relationship helps administrators design resilient topologies capable of handling failures gracefully without introducing instability.
Common Enterprise Use Cases for LACP
LACP appears throughout enterprise networking environments because of its flexibility and reliability. One of the most common use cases involves switch uplinks between access and distribution layers.
Access switches serving users often aggregate multiple uplinks toward distribution switches to increase bandwidth and provide redundancy. If one uplink fails, users maintain connectivity through remaining interfaces.
Data centers also rely heavily on LACP. Servers hosting virtualization platforms frequently aggregate multiple network adapters to improve throughput and support failover. Storage systems use aggregation to handle large backup and replication workloads efficiently.
Wireless infrastructures benefit from aggregation as well. Wireless controllers and high-density access point deployments generate significant traffic loads that can overwhelm single interfaces.
Branch offices may aggregate WAN-facing connections or core switch uplinks to improve reliability without investing in higher-speed interfaces.
Because LACP is standardized, these deployments can span multiple hardware vendors while maintaining consistent operational behavior.

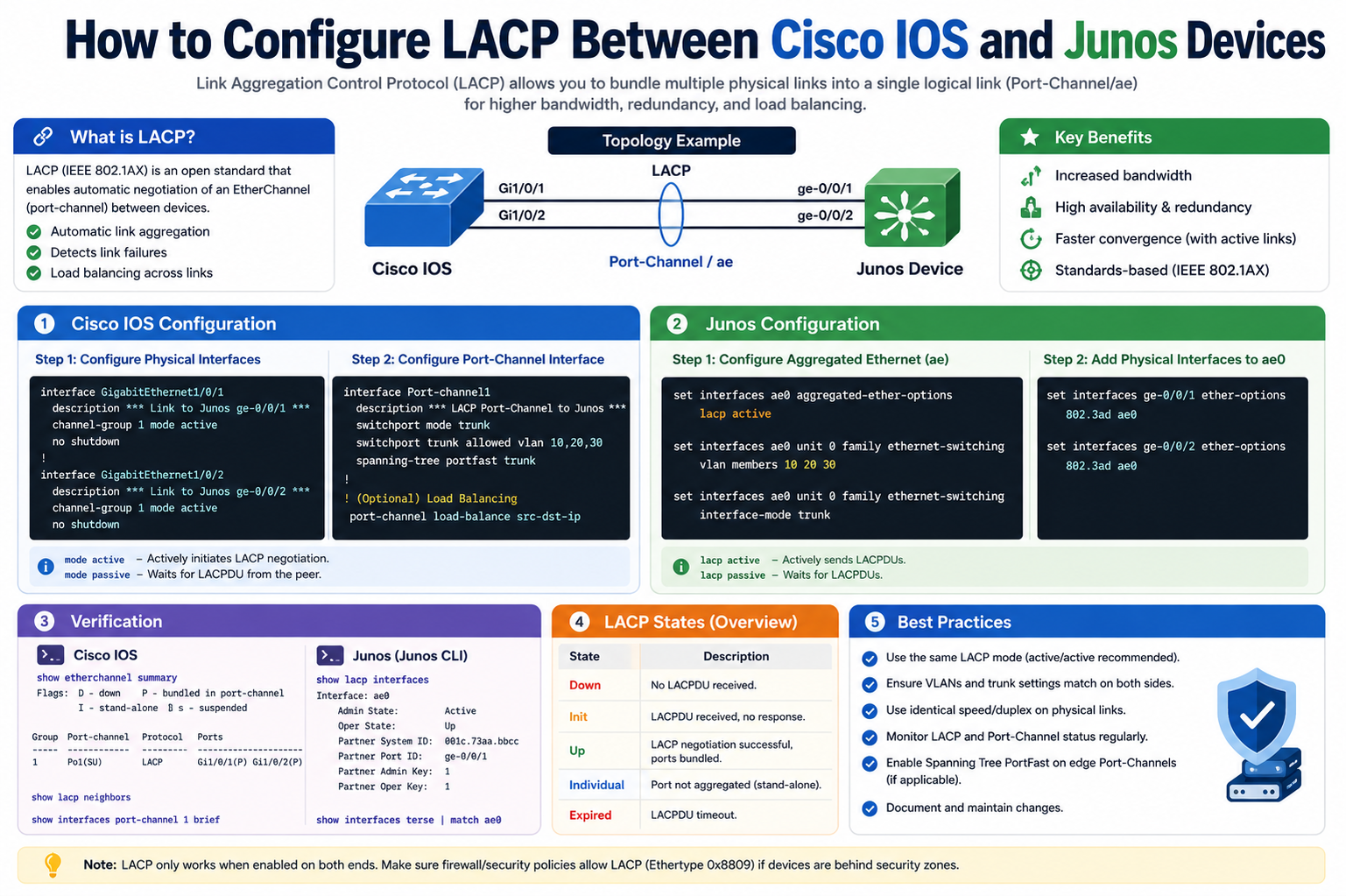

Configuring LACP Between Cisco IOS and Juniper Junos Devices
Deploying LACP successfully between Cisco IOS and Juniper Junos requires careful configuration on both platforms. Even though the protocol itself follows IEEE standards, each operating system implements configuration syntax differently. Understanding those differences is critical for achieving stable interoperability.
The primary objective is to create a logical aggregated interface on both devices while ensuring all physical member interfaces share identical operational characteristics. Any mismatch involving speed, duplex, VLAN tagging, trunk mode, MTU size, or negotiation settings can prevent the aggregation group from forming correctly.
Before entering configuration commands, administrators should verify that all interfaces intended for aggregation are physically connected and operational. Testing individual links beforehand helps isolate hardware issues before introducing aggregation complexity.
A proper deployment process usually begins with interface planning. Network engineers must determine which ports will participate in the aggregation group, what VLANs the trunk should carry, and whether the connection will support Layer 2 switching or Layer 3 routing functions.
In most enterprise environments, aggregated links operate as Layer 2 trunks carrying multiple VLANs between switches. This approach maximizes scalability and reduces cabling requirements while supporting segmentation across the infrastructure.
Understanding the Cisco IOS LACP Workflow
Cisco IOS simplifies LACP deployment through the use of interface ranges and channel groups. Instead of configuring each interface independently, administrators can select multiple ports simultaneously and apply aggregation settings collectively.
The process begins by entering global configuration mode and selecting the interfaces intended for aggregation. These interfaces are then assigned to a channel group configured for LACP negotiation.
Once the physical interfaces join the channel group, Cisco automatically creates a logical Port-Channel interface. VLAN trunking and switching parameters are typically configured directly on this logical interface rather than on the individual member ports.
This design streamlines administration because changes applied to the Port-Channel propagate consistently across all participating interfaces. Administrators avoid repetitive commands and reduce the likelihood of configuration mismatches.
Cisco IOS supports several operational modes for EtherChannel deployment. The “active” mode enables dynamic LACP negotiation by actively transmitting LACP packets. The “passive” mode listens for negotiation requests without initiating them. Static “on” mode bypasses negotiation entirely and should generally be avoided in mixed-vendor environments because it removes protocol-based validation.
Using active mode on Cisco switches ensures reliable communication with Juniper devices during the aggregation process.
Preparing Cisco Interfaces for Aggregation
Before assigning interfaces to a channel group, administrators should remove conflicting configurations from the physical ports. Existing VLAN assignments, spanning-tree modifications, or security settings may interfere with aggregation.
Consistency across all member interfaces is essential. Every interface participating in the Port-Channel should share identical speed, duplex, and operational characteristics. IOS typically rejects incompatible interfaces during the aggregation process, but verifying configurations manually prevents deployment delays.
Administrators should also confirm that interfaces are not administratively shut down. Aggregation cannot form if member ports remain disabled.
In production environments, maintenance windows are strongly recommended during deployment. Aggregating active uplinks may temporarily disrupt traffic while interfaces renegotiate and spanning-tree recalculates topology information.
Proper planning minimizes service interruptions and reduces operational risk.
Creating the Cisco EtherChannel
The aggregation process in IOS revolves around channel groups. Each channel group corresponds to one logical Port-Channel interface.
Administrators select the desired interfaces and assign them to a channel group using LACP active mode. IOS automatically generates the associated logical interface.
After the Port-Channel exists, trunking configuration becomes the next priority. Most inter-switch links require trunk mode so multiple VLANs can traverse the aggregated connection.
Native VLAN consistency is especially important in cross-vendor environments. Mismatched native VLAN configurations frequently create connectivity anomalies that are difficult to troubleshoot.
Allowed VLAN lists should also match between Cisco and Juniper devices. Restricting unnecessary VLANs improves security and reduces broadcast traffic.
Once configuration is complete, administrators should save the running configuration to ensure persistence after reboot.
How Cisco IOS Handles Traffic Distribution
Cisco switches use load-balancing algorithms to distribute traffic across member interfaces in the Port-Channel. The default hashing method varies depending on hardware platform and IOS version.
Common hashing inputs include source MAC address, destination MAC address, source IP address, destination IP address, or transport-layer port numbers. The selected algorithm determines how traffic flows map to physical interfaces.
Proper hashing selection is important for maximizing bandwidth utilization. For example, environments dominated by client-server traffic may benefit from IP-based hashing, while storage networks might perform better using Layer 4 port information.
Administrators can customize hashing behavior globally on many Cisco platforms. However, changes should be carefully evaluated because improper tuning may create uneven traffic distribution.
It is also important to understand that individual sessions generally remain pinned to one physical interface. LACP does not fragment single flows across multiple links simultaneously. Instead, it balances separate conversations across available interfaces.
This behavior preserves packet ordering and prevents application instability.
Verifying Cisco EtherChannel Operation
After configuration, verification becomes essential. IOS provides several operational commands for confirming EtherChannel status and diagnosing problems.
Administrators typically verify whether interfaces successfully joined the Port-Channel and whether LACP negotiation completed correctly. Operational status indicators reveal whether interfaces are bundled, suspended, or incompatible.
A healthy EtherChannel displays all intended member interfaces as active participants in the aggregation group. If interfaces remain suspended or standalone, configuration mismatches likely exist.
Common causes of failures include VLAN inconsistencies, speed mismatches, duplex conflicts, or incompatible trunk settings.
Verification should also include testing failover behavior. Disconnecting one member link confirms whether traffic continues forwarding across remaining interfaces without disruption.
Monitoring traffic counters provides additional insight into load-balancing efficiency and interface utilization patterns.
Understanding Juniper Junos Aggregated Ethernet Architecture
Juniper Junos approaches aggregation differently than Cisco IOS. Rather than relying heavily on grouped interface commands, Junos treats aggregation as a hierarchical configuration process.
The first requirement involves enabling aggregated Ethernet support at the chassis level. Administrators specify how many AE interfaces the system should support.
Physical interfaces are then individually associated with a specific AE interface. Unlike IOS, which can configure multiple interfaces simultaneously through ranges, Junos requires explicit configuration for each participating port.
This approach may initially appear more complex, but it offers exceptional flexibility and granular control. Each physical interface retains its own configuration hierarchy while contributing to the aggregated logical interface.
Logical switching and VLAN parameters are configured under the AE interface itself rather than directly on member ports.
The Junos commit-based configuration model adds another layer of operational safety. Changes remain in a candidate configuration until committed, allowing administrators to review modifications before activation.
Preparing Juniper Interfaces for Aggregation
As with Cisco deployments, Juniper interfaces should be cleaned of conflicting configurations before aggregation begins.
Existing logical units on physical interfaces often require removal before assigning the interfaces to an AE group. This step prevents configuration conflicts between standalone interface definitions and aggregated membership assignments.
Administrators must also verify that all intended member ports operate at identical speeds and duplex settings. Aggregated Ethernet groups require operational consistency among participating interfaces.
Physical connectivity should be carefully validated before committing configurations. Incorrect cabling or transceiver issues can prevent interfaces from joining the AE bundle successfully.
Juniper platforms frequently support extensive diagnostic capabilities that help identify optical signal problems, interface flaps, or negotiation failures during deployment.
Ensuring interface stability before aggregation significantly reduces troubleshooting complexity later.
Building Aggregated Ethernet Interfaces in Junos
After enabling aggregated Ethernet support globally, administrators configure each physical interface individually for participation in the AE bundle.
Each member interface references the target AE interface identifier. For example, multiple physical interfaces may point toward ae0 as their aggregation destination.
Once member assignments are complete, LACP operational parameters are configured directly under the AE interface hierarchy. Active mode is commonly used to ensure dynamic negotiation with Cisco devices.
Trunk mode configuration occurs under the logical unit associated with the AE interface. VLAN handling, switching families, and trunk settings are applied at this level.
This separation between physical and logical configuration represents one of the defining characteristics of Junos architecture.
After reviewing the candidate configuration, administrators commit the changes to activate the aggregation group.
The commit process validates syntax and operational compatibility before applying changes, reducing the risk of accidental misconfiguration.
LACP Timers and Their Operational Impact
LACP uses periodic timers to exchange control frames between switches. These timers determine how quickly devices detect failures and renegotiate aggregation membership.
Standard implementations support both slow and fast timers. Slow timers exchange LACP packets less frequently, while fast timers provide quicker failure detection at the cost of additional control traffic.
Fast timers improve convergence speed in environments where rapid failover is critical. Data centers, financial systems, and latency-sensitive applications often benefit from aggressive timer settings.
However, timer mismatches between Cisco and Juniper devices can create instability. Both sides should use compatible operational settings to ensure predictable behavior.
Administrators must balance responsiveness against control-plane overhead when selecting timer configurations.
Understanding timer behavior becomes especially important in large-scale infrastructures containing many aggregated links.
The Role of MTU Consistency in Aggregation
Maximum Transmission Unit consistency is another critical requirement for stable LACP operation.
If member interfaces use different MTU values, aggregation may fail or traffic may experience fragmentation issues. Both Cisco IOS and Junos expect uniform MTU settings across all interfaces participating in the aggregation group.
Jumbo frame environments require special attention because mismatches can silently disrupt application performance. Storage traffic, virtualization platforms, and backup systems commonly rely on larger frame sizes.
Administrators should verify MTU alignment not only across member interfaces but also across the entire end-to-end network path.
Consistent MTU settings reduce packet fragmentation and improve throughput efficiency in high-performance environments.
Handling VLANs Across Aggregated Links
Most LACP deployments transport multiple VLANs simultaneously across trunk connections. VLAN consistency therefore becomes essential for proper operation.
Cisco IOS uses switchport trunk commands to define allowed VLANs and native VLAN behavior. Junos applies similar functionality under Ethernet-switching configuration hierarchies.
Any mismatch involving VLAN membership or tagging can cause selective communication failures. Some VLANs may function correctly while others remain unreachable.
Administrators should maintain clear VLAN documentation and verify tagging behavior carefully during deployment.
Native VLAN mismatches are particularly problematic because they often produce intermittent connectivity issues that appear inconsistent across devices.
Using explicit VLAN tagging strategies simplifies troubleshooting and reduces ambiguity in mixed-vendor environments.
Troubleshooting Cross-Vendor Aggregation Problems
Even though LACP is standardized, cross-vendor deployments occasionally encounter interoperability challenges.
One common issue involves negotiation mismatches. If one side operates in passive mode while the other also remains passive, aggregation never forms because neither device initiates communication.
Interface inconsistencies also cause failures. Speed mismatches, duplex conflicts, VLAN discrepancies, and MTU differences frequently prevent successful aggregation.
Incorrect cabling presents another common problem. Physical interfaces must connect to the intended aggregation peer. Accidentally connecting interfaces to different devices may create spanning-tree complications or suspended links.
Administrators should also verify software compatibility. Older firmware versions occasionally contain interoperability bugs affecting LACP negotiation.
Operational commands on both IOS and Junos provide valuable diagnostic information regarding aggregation state, partner identifiers, synchronization status, and interface membership.
Systematic troubleshooting dramatically reduces deployment time and minimizes operational disruptions.
Monitoring and Maintaining Aggregated Links
LACP deployment is not a one-time task. Ongoing monitoring ensures the aggregation group continues operating efficiently over time.
Administrators should periodically review interface statistics, error counters, and traffic distribution patterns. Uneven load balancing may indicate hashing inefficiencies or abnormal traffic flows.
Interface flapping can destabilize aggregated links and trigger spanning-tree recalculations. Identifying unstable member interfaces early prevents larger network disruptions.
Firmware upgrades should also be carefully managed because aggregation behavior occasionally changes between software releases. Testing interoperability in staging environments before production deployment reduces operational risk.
Monitoring tools capable of tracking Port-Channel or AE interface performance provide valuable visibility into bandwidth utilization and redundancy status.
Proper maintenance ensures aggregated links continue delivering reliable high-performance connectivity across the enterprise network.
Advanced LACP Design Strategies for Enterprise Networks
As enterprise infrastructures continue growing in scale and complexity, LACP becomes more than just a bandwidth aggregation technology. In modern environments, it serves as a foundational component for redundancy, scalability, virtualization, and high-availability architecture. Deploying LACP between Cisco IOS and Juniper Junos devices is not simply about combining interfaces. It is about creating resilient communication paths capable of supporting evolving workloads without introducing operational instability.
Organizations operating large campus networks, data centers, cloud integrations, and virtualization clusters depend heavily on aggregated links to maintain predictable performance. A properly designed aggregation strategy allows network administrators to scale bandwidth incrementally while minimizing downtime and simplifying topology management.
Cross-vendor deployments introduce additional planning considerations because Cisco and Juniper devices may differ in operational defaults, command structures, and feature implementation details. Even though both vendors support IEEE-standard LACP, achieving long-term operational stability requires careful design choices and consistent administrative practices.
Understanding advanced deployment strategies helps administrators move beyond basic connectivity and build infrastructures optimized for reliability, scalability, and maintainability.
Designing LACP for High Availability
One of the primary reasons organizations deploy LACP is to improve network availability. In traditional single-link topologies, one cable failure can disconnect entire segments of the network. Aggregated interfaces eliminate this single point of failure by distributing traffic across multiple physical paths.
When one interface fails, the logical aggregated interface remains operational using the remaining member links. Users may experience reduced throughput temporarily, but connectivity continues without complete interruption.
This capability becomes critical in environments where downtime directly affects business operations. Financial systems, healthcare applications, cloud services, manufacturing networks, and enterprise collaboration platforms all require highly available connectivity.
Designing for high availability involves more than simply adding extra cables. Administrators must also consider physical path diversity. Ideally, aggregated links should traverse separate hardware modules, transceivers, and cable routes whenever possible.
For example, placing all member interfaces on the same line card introduces a hidden single point of failure. If that hardware module fails, the entire aggregation group becomes unavailable despite having multiple interfaces.
Similarly, routing all cables through the same conduit exposes the network to physical damage risks. Properly engineered deployments distribute member interfaces across independent physical paths whenever feasible.
Cisco IOS and Juniper Junos both support resilient aggregation architectures, but operational success depends heavily on thoughtful infrastructure planning.
Using LACP in Data Center Architectures
Modern data centers rely extensively on LACP because of the massive traffic volumes generated by virtualization, storage replication, backups, and east-west traffic flows between servers.
Virtualized environments especially benefit from aggregation because hypervisors often host dozens or hundreds of virtual machines simultaneously. Multiple network adapters aggregated together provide the bandwidth necessary to support these workloads efficiently.
Storage traffic also places significant demands on network infrastructure. Technologies such as iSCSI, NFS, and storage replication generate sustained high-throughput data transfers that can easily saturate individual interfaces.
By aggregating multiple Ethernet connections, administrators can increase available bandwidth without immediately upgrading to higher-speed interfaces. This approach often reduces costs while still meeting performance requirements.
Data center deployments frequently combine Cisco switching infrastructure with Juniper routing platforms. LACP provides the interoperability necessary to maintain consistent connectivity across these environments.
Aggregation also improves maintenance flexibility. Individual member interfaces can sometimes be serviced or replaced without completely disrupting the logical connection, allowing organizations to perform maintenance activities with reduced operational impact.
The Relationship Between Virtualization and LACP
Server virtualization dramatically increased the importance of link aggregation in enterprise environments. Physical servers no longer host single applications. Instead, one server may support dozens of virtual machines generating concurrent traffic flows.
Hypervisors such as VMware, Hyper-V, and KVM often use NIC teaming or bonding technologies that integrate closely with switch-side LACP configurations. Aggregated interfaces on Cisco IOS and Junos switches provide the network-side support necessary for these server configurations.
Virtualization clusters depend heavily on stable network connectivity for functions such as live migration, distributed storage access, and cluster synchronization. Interruptions can affect multiple workloads simultaneously.
LACP helps maintain consistent performance while also supporting failover capabilities. If one physical adapter fails, traffic automatically redistributes across the remaining adapters without disconnecting virtual machines.
Administrators deploying aggregation in virtualized environments must carefully coordinate settings between servers and switches. Hashing algorithms, MTU values, VLAN tagging, and failover policies should align properly to avoid performance bottlenecks.
As virtualization density increases, properly designed aggregation strategies become even more important for maintaining predictable application performance.
Understanding Active and Passive LACP Modes
One of the most important operational concepts in LACP is negotiation mode behavior. Cisco IOS and Junos both support active and passive operational states.
Active interfaces initiate negotiation by transmitting LACP frames to potential aggregation partners. Passive interfaces wait for incoming negotiation packets before responding.
At least one side of the connection must operate in active mode for aggregation to form successfully. If both sides remain passive, no negotiation occurs because neither device starts the exchange process.
In cross-vendor deployments, administrators commonly configure both Cisco and Juniper interfaces for active mode. This approach simplifies troubleshooting and ensures predictable negotiation behavior.
Although passive mode can reduce control traffic slightly, the operational benefits are usually minimal compared to the troubleshooting complexity introduced by inactive negotiations.
Understanding these negotiation mechanics helps administrators diagnose aggregation failures quickly and avoid common deployment mistakes.
How LACP Detects Link Failures
LACP continuously monitors the operational status of member interfaces through periodic control packet exchanges. These packets allow switches to determine whether links remain functional and synchronized.
If a member interface stops responding to LACP packets, the switch removes that interface from the aggregation group automatically. Traffic redistribution occurs dynamically across the remaining operational interfaces.
This automated failover mechanism is one of the reasons LACP is widely preferred over static aggregation methods. Static configurations may continue forwarding traffic toward failed interfaces because they lack negotiation awareness.
Fast LACP timers improve failure detection speed significantly. Instead of waiting extended periods to recognize connectivity loss, switches can react rapidly and restore traffic flow using remaining links.
Rapid failover becomes especially important for latency-sensitive applications such as voice communication, financial transactions, and real-time analytics systems.
However, aggressive timers also increase protocol overhead slightly. Administrators should balance responsiveness against operational scale when selecting timer values.
Common Aggregation Topologies
Enterprise networks use several common aggregation topologies depending on infrastructure design requirements.
One of the most widespread approaches involves aggregating uplinks between access and distribution switches. Access switches serving end users often use multiple uplinks aggregated toward upstream devices for redundancy and increased bandwidth.
Another common topology involves server-to-switch aggregation. High-performance servers use multiple NICs connected to redundant switches, improving both throughput and fault tolerance.
Storage systems frequently implement aggregation as well. Backup appliances, NAS platforms, and storage arrays often generate sustained traffic loads requiring additional bandwidth.
Aggregation also appears in wireless environments. Wireless controllers handling thousands of clients benefit from multiple aggregated uplinks to avoid congestion.
Data center spine-and-leaf architectures increasingly rely on large-scale aggregation to support east-west traffic flows between virtualization clusters and application workloads.
Cisco IOS and Juniper Junos both support these deployment models effectively, making LACP suitable for nearly every enterprise networking layer.
Avoiding Common LACP Misconfigurations
Many aggregation problems stem from relatively simple configuration mistakes. Understanding these pitfalls helps administrators deploy stable environments more efficiently.
One of the most frequent issues involves mismatched interface settings. Member interfaces must share identical speed, duplex, VLAN, and MTU characteristics. Even minor inconsistencies can prevent aggregation from forming correctly.
Another common mistake involves mixing access and trunk configurations across interfaces. All ports participating in the aggregation group should operate using consistent switching modes.
Incorrect VLAN tagging also causes widespread problems. Native VLAN mismatches often create intermittent communication failures that are difficult to diagnose.
Administrators sometimes accidentally configure interfaces connected to different physical devices within the same aggregation group. Traditional LACP assumes all member interfaces connect to the same peer device unless specialized multichassis technologies are used.
Failure to remove old configurations from interfaces before aggregation can also introduce conflicts. Legacy spanning-tree settings, security policies, or interface-specific parameters may interfere with proper operation.
Careful validation before deployment reduces the likelihood of these issues significantly.
The Importance of Consistent Documentation
As infrastructures expand, documentation becomes increasingly important for operational stability.
Aggregated interfaces often support critical backbone connections carrying large volumes of production traffic. Inconsistent naming conventions or missing documentation can complicate troubleshooting during outages.
Administrators should document interface mappings, VLAN assignments, trunk parameters, logical interface identifiers, and physical cable paths clearly.
Cross-vendor environments especially benefit from detailed documentation because configuration syntax differs between Cisco IOS and Junos platforms.
Accurate records simplify maintenance activities, accelerate troubleshooting, and reduce human error during upgrades or migrations.
Well-documented infrastructures also improve knowledge transfer between engineering teams and support long-term scalability.
Scaling LACP for Growing Networks
One major advantage of aggregation is scalability. Organizations can gradually increase bandwidth by adding member interfaces instead of replacing entire infrastructure components immediately.
For example, a business operating a 2Gb aggregated connection may later expand to 4Gb or 8Gb simply by adding additional interfaces to the aggregation group.
This incremental scalability often provides cost advantages because organizations maximize the value of existing hardware investments.
However, scalability also introduces design considerations. Administrators must ensure switches support sufficient interface density, aggregation group limits, and backplane capacity to handle increased traffic volumes.
Oversubscribing switch uplinks can reduce the performance benefits of aggregation. Proper capacity planning ensures the infrastructure can support future growth effectively.
Cisco IOS and Junos both support scalable aggregation architectures, but platform limitations vary by hardware model. Understanding those limitations helps organizations plan long-term infrastructure expansion successfully.
Operational Monitoring and Performance Visibility
Continuous monitoring plays a critical role in maintaining healthy aggregated environments.
Administrators should regularly review interface utilization patterns to ensure traffic distributes evenly across member links. Significant imbalance may indicate suboptimal hashing behavior or unusual application traffic patterns.
Monitoring systems should also track interface errors, packet drops, and flapping events. Persistent physical instability on one member link can degrade overall aggregation performance.
Performance visibility becomes even more important in cross-vendor environments because troubleshooting workflows may differ between Cisco and Juniper platforms.
Modern monitoring solutions often provide aggregated interface analytics, allowing administrators to evaluate throughput trends, failover events, and bandwidth utilization over time.
Historical performance data also supports future capacity planning decisions.
Without proactive monitoring, minor interface problems can gradually evolve into larger network disruptions.
Security Considerations for Aggregated Links
Although LACP primarily focuses on performance and redundancy, aggregated links also influence network security design.
Because Port-Channels and AE interfaces often carry multiple VLANs simultaneously, they frequently become critical transit paths for sensitive data. Proper VLAN segmentation and trunk filtering are therefore essential.
Administrators should restrict allowed VLANs to only those required for operational purposes. Permitting unnecessary VLANs increases attack surfaces and broadcast exposure.
Control-plane security mechanisms should also protect aggregation protocols from malicious manipulation. Unauthorized devices attempting to participate in aggregation groups can create operational instability.
Consistent interface security policies across all member ports help maintain predictable behavior.
Physical security matters as well. Aggregated uplinks often represent high-value infrastructure targets because they carry large volumes of enterprise traffic.
Protecting these connections through secure cabling, restricted access, and monitoring improves overall infrastructure resilience.
Conclusion
Deploying LACP between Cisco IOS and Juniper Junos devices provides organizations with a powerful method for improving bandwidth, redundancy, scalability, and operational resilience across mixed-vendor infrastructures. By combining multiple physical interfaces into a single logical connection, enterprises can create highly available network paths capable of supporting modern application demands while reducing the impact of hardware failures.
Successful implementation depends on careful planning, consistent configuration practices, and a thorough understanding of how aggregation behaves across both platforms. Administrators must ensure interface consistency, proper VLAN alignment, compatible negotiation settings, and accurate physical connectivity to achieve stable interoperability.
Beyond basic connectivity, LACP plays a critical role in data centers, virtualization platforms, enterprise campus networks, storage infrastructures, and high-performance application environments. Its standards-based architecture allows organizations to maintain flexibility while avoiding vendor lock-in, making it one of the most valuable technologies in modern networking.
As enterprise environments continue evolving, LACP remains an essential solution for building scalable, fault-tolerant, and high-performance network infrastructures capable of supporting long-term operational growth.
